Voting App

Description

The voting app is based on that architecture :
  • A Python web app which lets you vote between two options
  • A Redis queue which collects new votes
  • A Java worker which consumes votes and stores them in a PostgreSQL database
  • A PostgreSQL database backed by a Docker volume
  • A Node.js web app which shows the results of the voting in real time
The architecture can be schematized like this :
Voting App architecture
Be aware that the voting application only accepts one vote per client. It does not register votes if a vote has already been submitted from a client.
The images build in this project are publicly accessible on Docker Hub.

Kubernetes architecture

The purpose of this bootcamp is to explain how to deploy this kind of application in a Kubernetes cluster. The idea is to respect those principles to be able to deploy the Voting App on Minikube, an on premise cluster or a managed cluster like AKS, EKS or GKE easily :
  • Portability : The application has to be deployable on any Docker orchestration platform
  • Auto / Scalability : Each part of the application has to be scalable to ensure the next principle
  • High Availability : The application has to be highly available even across updates
  • Persitency : The data collected during the updates has to be persisted to not lose data
  • Security : The application has to be deployed in a secure environment
Each part of this architecture is an answer to some principles mentioned previously.

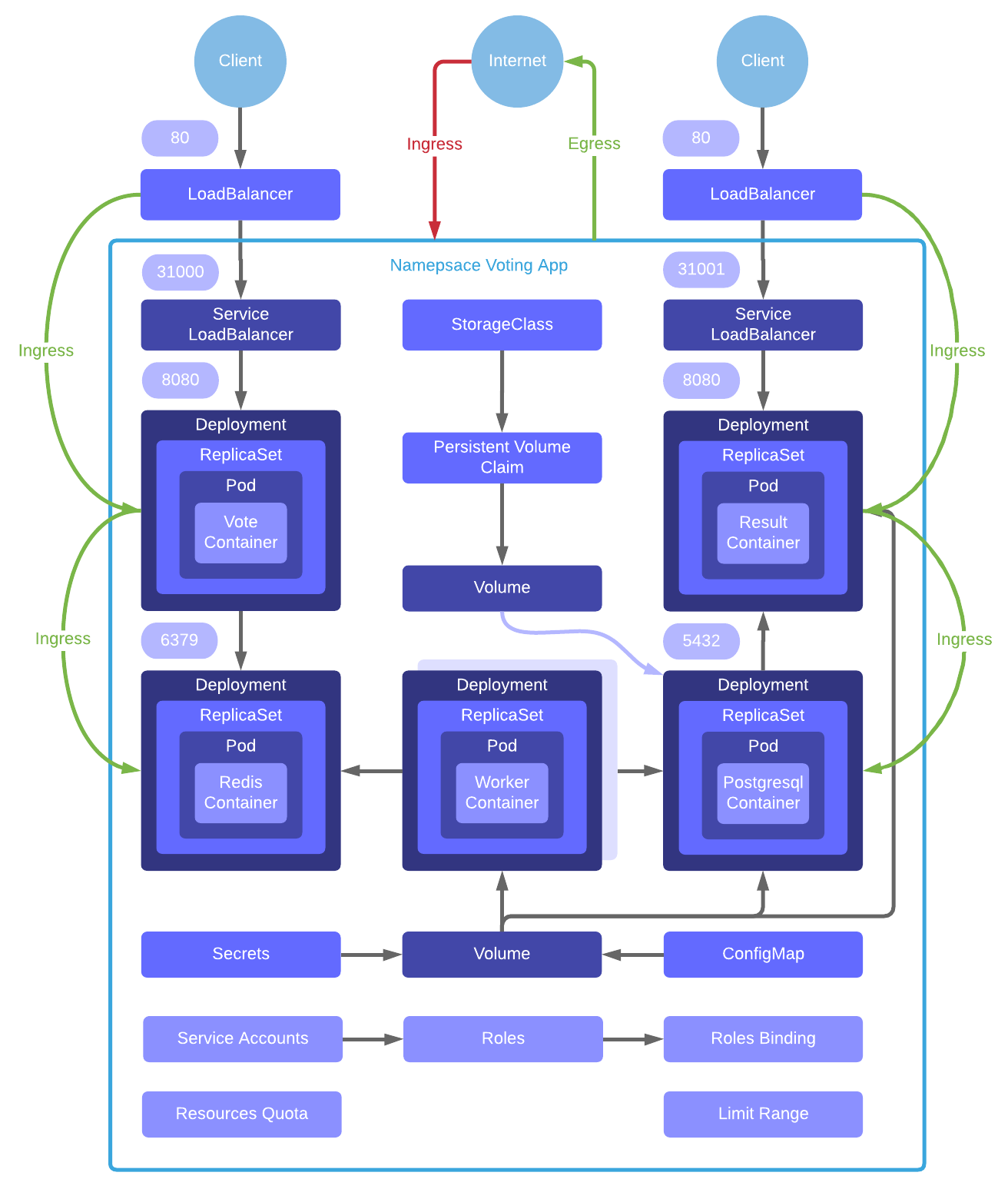

The schema below resume the architecture principles :
Voting App Architecture

Docker Images

Each part of the application has his own Docker image :
Service
Pods Name
Database
db
postgres:10.4
Queue
redis
redis
Vote
vote
wikitops/examplevotingapp-vote:1.1
Result
result
wikitops/examplevotingapp-result:1.1
Worker
worker
wikitops/examplevotingapp-worker:1.1
